Features
1. Pixel Control Series with external programmable smart IC UCS512L1, appropriate for pixel controllable application by DMX signal.
2. 15M[49.2ft.] run length with power fed on one side, using constant current IC for better consistent under 48VDC input.
Parameters
| Part No. | Dimension | Increment | LED Type | LED Qty | Voltage | Power | CCT / Wavelength |
Brightness @Mix |
Brightness @Red |
Brightness @Green |
Brightness @Blue |
Brightness @White |
Beam Angle |
IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL-X5050XX- 48-CV-096-7106 |
15000*12*2.1mm [591*0.47*0.08in.] |
125mm [4.92in.] |
SMD5050 4in1 |
96LED/M [29LED/ft.] |
48VDC |
14.4W/M [4.27W/ft.] (6W/color) |
R: 620~630nm, G: 520~530nm, B: 450~460nm |
620lm/M |
66lm/M [20lm/ft.] |
276lm/M [84lm/ft.] |
54lm/M [16lm/ft.] |
246lm/M [75lm/ft.] |
120° |
IP20/ IP54 Plus/ IP67 Plus |
Details

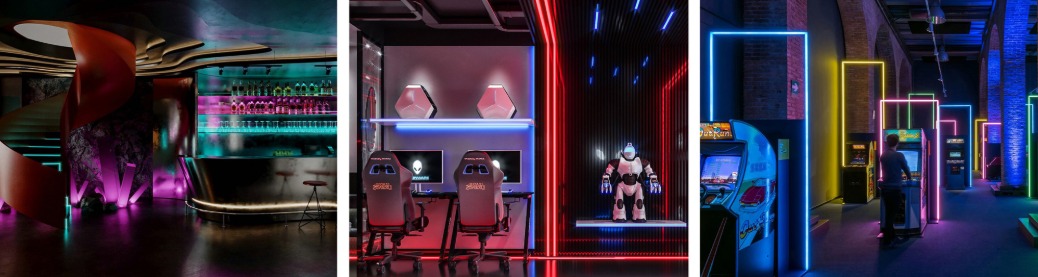

Application
1.Ideal for indirect lighting applying at architectural contour, corridor, stair, ceiling, cove, handrail, skirting, barrier, garden, bridge, lift etc
