ZHONGSHAN XINKUI LIGHTING CO. LTD
Features
1. Plus Series using 5050 RGBW 4in1 LED with top quality material, such as Epistar/San’an chip as standard configuration.
2. High efficacy up to 120lm/W in white(4000K,CRI90).
3. Rigid light bar using FR4 PCB with classical constant voltage design supports on-site cutting and connection.
Parameters
| Part No. | Dimension | Increment | LED Type | LED Qty | Voltage | Power | CCT / Wavelength |
Brightness @RGBW |
Light Efficiency @RGBW |
Brightness @Each color |
Light Efficiency @CRI90&4000K |
Beam Angle |
IP Rating |
PCB Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL-R5050M4- 24-CV-126-44690R |
1000*10*3mm [39.3*0.39*0.12in.] |
55.55mm [2.19in.] |
SMD5050 RGBW 4in1 |
126LED/M |
24VDC |
19.2W/M [5.85W/ft.] @ALL [1.46W/ft.] @each color |
R:625~630nm, G:520~525nm, B:460~470nm, W: 2700K&3000K& 3500K&4000K& 5000K&6500K |
1248lm/M [380lm/ft.] |
65lm/W |
W:570lm/M [173lm/ft.] [58lm/ft.] [195lm/ft.] [27lm/ft.] |
W: 120lm/W | 120° | IP20 [Dry] |
white, double-sided FR4 base, 1.2mm [0.05in.] thickness, 2oz copper OSP |

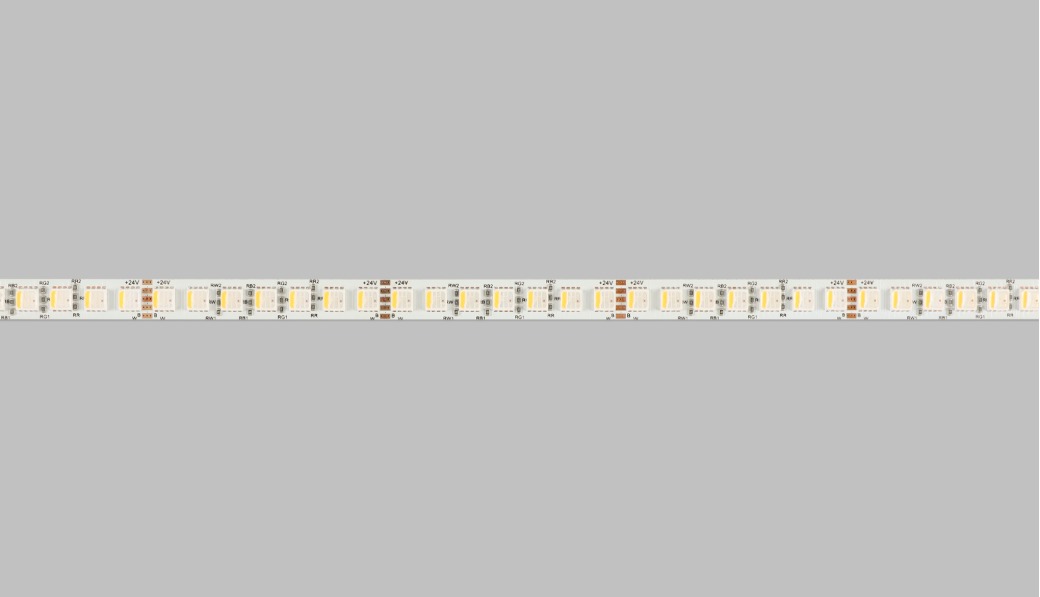

Details

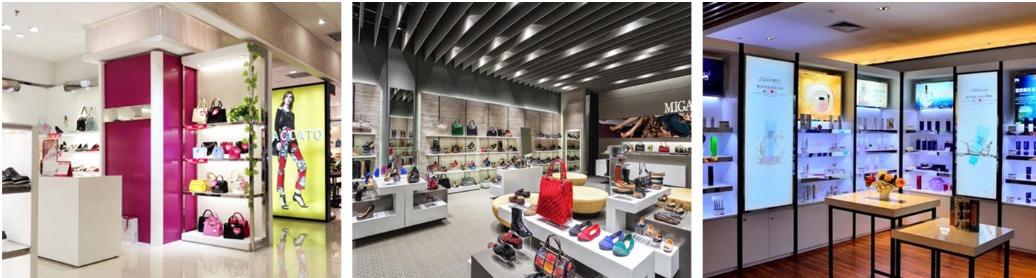

Application
1. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage etc.
