ZHONGSHAN XINKUI LIGHTING CO. LTD
Features
1. Upscale milky color silicone with mate finishing self-cleaning coating.
2. Uniform, dot-free, smooth and comfortable using COB light source.
3. Good structural and mechanical properties during usage and manufacturing.
4. High production efficiency by adopting silicone extrusion processing technology.
5. Higher waterproof grade in IP67 for indoor and outdoor usage.
6. 50,000h lifespan and 5 years warranty with CE&UL approval.
Parameters
| Part No. | Dimension | Increment | LED Type | LED Qty | Voltage | Power | CCT / Wavelength |
Brightness @CRI90&4000K |
Light Efficiency @CRI90&4000K |
Beam Angle |
IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NS-177 (GL-HFCOBXX-24-CV-480-9423) (White) |
L5000*W12*H6mm [L197*W0.47*H0.24in.] |
50mm |
COB |
480chips/M |
24VDC |
12W/M |
2700K±120K (5-step SDCM) |
912lm/M |
76lm/W |
120° |
IP67 |
| NS-177 (GL-HFCOBXX-24-CV-320-9768) (White) |
Free cutting to be any length |
320LEDs/M [98LEDs/ft.] |
15W/M [4.57W/ft.] |
2700K±120K (5-step SDCM) |
1200lm/M [366lm/ft.] |
80lm/W | |||||
| NS-177 (GL-HFCOBXX-24-CV-608-9430) (CCT) |
26.31mm [1.04in.] |
608chips/M [185chips/ft.] |
14W/M [4.3W/ft.] |
2700K~6500K (5-step SDCM) |
980lm/M [299lm/ft.] |
70lm/W | |||||
| NS-177 (GL-HFCOBXX-24-CV-840-9431) (RGB) |
50mm [1.97in.] |
840chips/M [256chips/ft.] |
15W/M [4.57W/ft.] |
R: 620-630nm G: 515-525nm B: 460-470nm |
480m/M [146lm/ft.] |
32lm/W |
Details

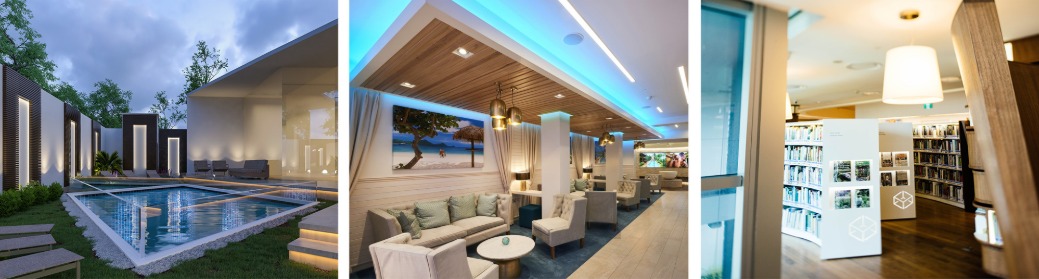

Application
Iindirect decorative lighting for table, showcase, shelf, cabinet, corridor, stair, cove, ceiling etc.
