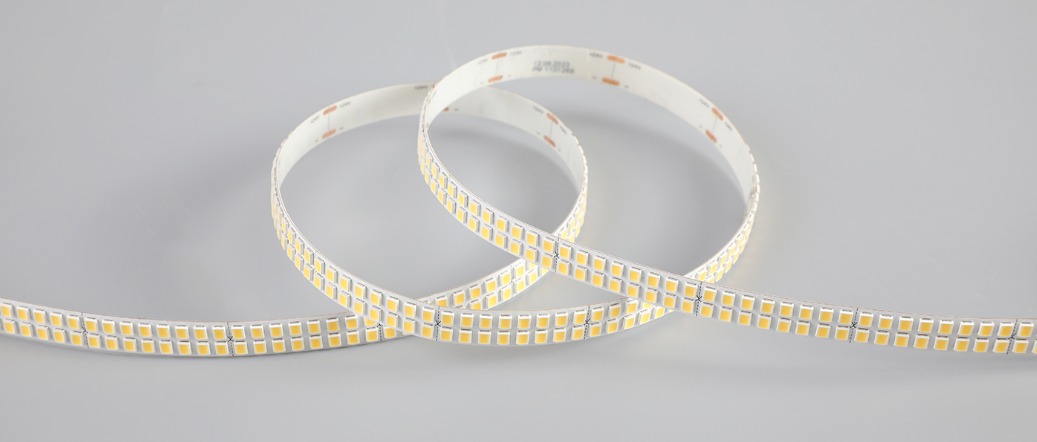

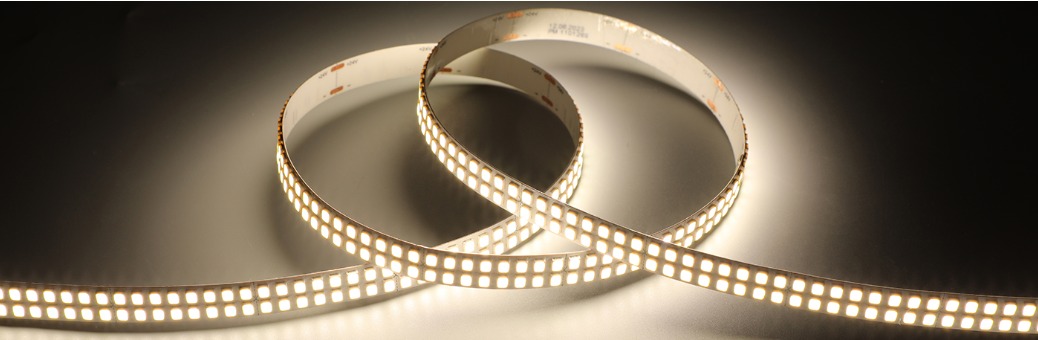

Built-in IC Series - 480LED/M - 9649
Built-in IC Series - 480LED/M - 9649
GET FREE QUOTE

Features

Ultra-Slim High-Density Built-in IC LED Strip Manufacturer – 480 LEDs/M, 175 lm/W, 10mm Width

Professional Built-in IC LED Strip Factory – Custom high-density 480LEDs/m flexible strip with ultra-slim 10mm PCB, ideal for architectural linear lighting, commercial display, and high-end residential projects.

COB Alternative & Component-Free Design – Patented built-in IC series with no external components, only LEDs visible, delivering seamless linear lighting for hotels, retail stores, and office spaces.

High Lumen Output LED Strip Wholesale – Industry-leading 175 lm/W efficacy (4000K, CRI80), energy-saving, high brightness, perfect for engineering-grade lighting solutions.

Constant Current IC LED Strip Supplier – Built-in constant current IC ensures uniform brightness from end to end, single-end power feeding support, long run length, voltage drop free.

Cuttable & Customizable – Factory direct OEM/ODM service, custom lengths, custom CCT, custom voltage (12V/24V/48V), waterproof options available (IP20/IP65/IP67/IP68).

5-Year Warranty & Global Certifications – CE, RoHS approved. 50,000 hours lifetime, 48-hour aging test, engineering grade quality. Competitive factory price, fast sampling, global wholesale supply.

Parameters

Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
Wavelength

Brightness

@CRI80&4000K

Light Efficiency
@CRI80&4000K

Brightness

@CRI90&4000K

Light Efficiency
@CRI90&4000K

Beam Angle

IP Rating
KS-9649 L5000*W10*H1.4mm
[L197*W0.39*H0.06in.]

33.33mm

[1.3in.]

SMD2835

480LED/M

[146LED/ft.]

24VDC

16W/M

[4.88W/ft.]

2700K / 3000K

3500K / 4000K

5000K / 6500K

(3 step in one bin)

2800lm/M
[853lm/ft.]

175lm/W 2400lm/M
[732lm/ft.]
150lm/W 120°

IP20/IP65

[Dry/Wet]

Details

Built-in IC Series - 480LED/M - 9649

Built-in IC Series - 480LED/M - 9649

GET FREE QUOTE
